Group testing points to new 2023 mirrors

(Motorsport-Total.com) – As the center a part of a triple header, the Formula 1 race within the Netherlands is not going to truly carry a lot new by way of updates. In truth, solely 4 groups introduced new components to the monitor, which has a special attribute than the 2 tracks surrounding it on the calendar.

Formula 1 tried bigger rear-view mirrors at Zandvoort

Zoom

Download

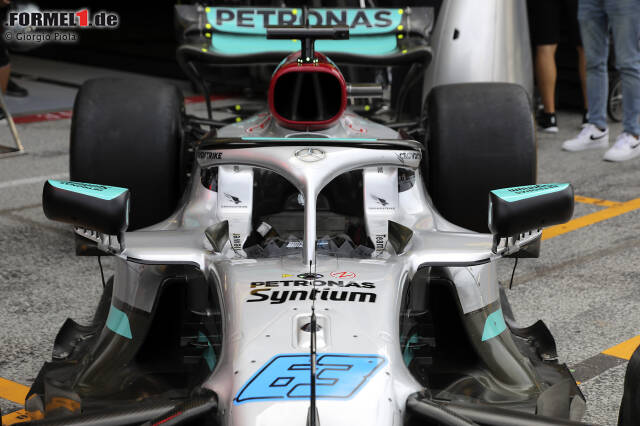

However, free follow on Friday provided little technical pleasure, as group testing was performed on behalf of the FIA. Previously, Red Bull in Hungary and Mercedes in Belgium examined bigger rear-view mirrors, which the world governing physique desires to introduce in 2023 and past to enhance security.

Rear-view mirrors have lengthy been an issue in Formula 1. Aerodynamicists try to reduce their detrimental results even on the expense of drivers’ skill to see what is occurring round and behind them.

In their quest to suppress the aerodynamic imperfections of mirrors, designers not solely selected the smallest attainable physique across the mirror, but in addition adopted the pattern of utilizing aerodynamic attachments to change the course of airflow.


Photo gallery: New Formula 1 rear-view mirrors on “take a look at” in Zandvoort

As anticipated with full-field testing, there have been quite a lot of totally different options that the groups needed to use to achieve some insights each for themselves and the FIA ​​(see photograph gallery).

Alpine

But there have been additionally common updates at Zandvoort: Alpine has been one of the lively groups this season when it comes to supplying new components. The Enstone-based group has had one thing new to supply in each race of the season up to now.

Of course, some packages had been extra complete than others, nevertheless it’s attention-grabbing to see that the group has been in a position to maintain a gradual stream of improvement that not solely displays the affect of different groups, but in addition its personal design cues.

For the Dutch Grand Prix, the group made some modifications to improve the already present downforce bundle that they deliberate to use at that location.

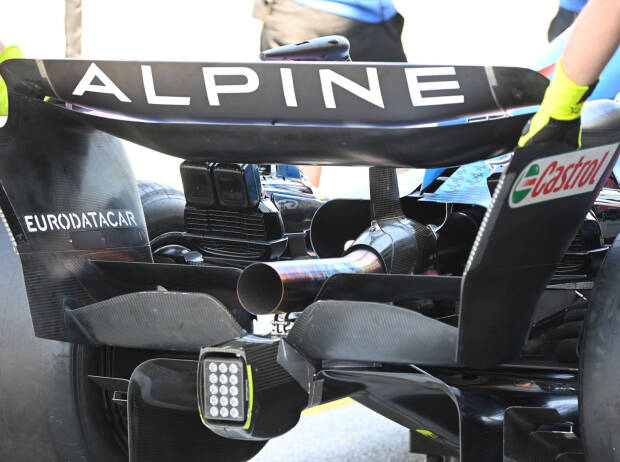

Alpine rear wing

Changes had been made to the beam wing at Alpine

Zoom

Download

At the entrance of the automotive this resulted in minimal modifications to the entrance wing design, introducing a new flap to cut back downforce and enhance the automotive’s steadiness for rear modifications.

The beam wing was modified by Alpine on the rear of the car, utilizing a short-chord higher member for a stacked, plane-like configuration.

It is value noting that up to now there are two configurations accessible: medium to excessive downforce and low downforce. This new association will fall someplace between the 2 or probably exchange the mid-to-high downforce choice solely.

Alphatouri

Alfa Tauri used the Dutch Grand Prix as a possibility to enhance its rear wing. The Fenza group made modifications to the transition between the wing panels and the endplate.

Alpha Tauri rear wing

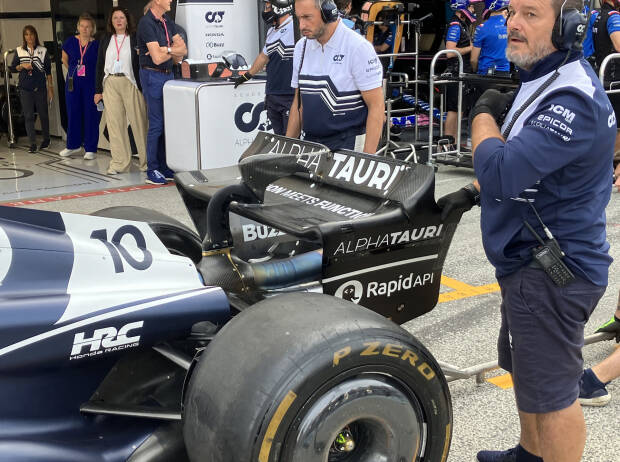

AlphaTauri introduced a revised rear wing

Zoom

Download

The arc is now extra tightly wrapped, rising the span of the primary airplane and high flap, whereas utilizing a bigger wingtip cutout to compensate for the extra vortex power that may in any other case be created.

Williams

Williams had a new entrance wing accessible for the Dutch Grand Prix, the primary time the group has modified this sector for the reason that replace at Silverstone.

Williams

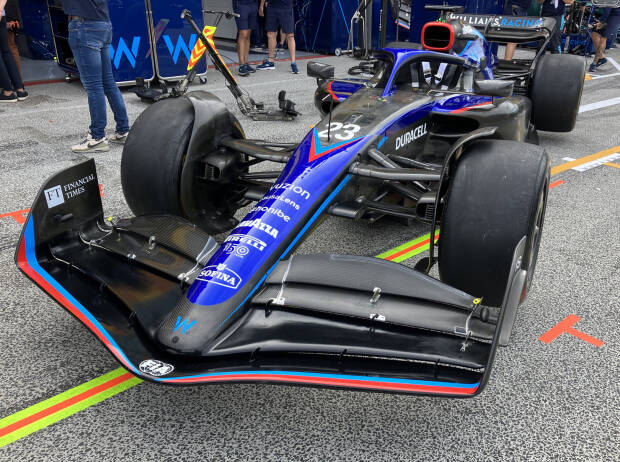

Williams did extra work on the entrance finish

Zoom

Download

The modifications did not even require the manufacturing of a wholly new wing, which is in fact a very good factor given the finances constraints, with the outer portion of the higher flaps and the transition to the endplate singled out as a degree that would lead to this. Increase efficiency.

This a part of the wing is comparatively delicate due to the trade-off between permitting the flaps to generate downforce and utilizing the joint to have an effect on the washout generated by the wing.

Alfa Romeo

Alfa Romeo made modifications to the rear brake ducts on the Dutch Grand Prix. The group was striving to enhance efficiency, which shouldn’t be restricted to the monitor traits in Zandvoort.

Guanyu Zhou and Valtteri Bottas

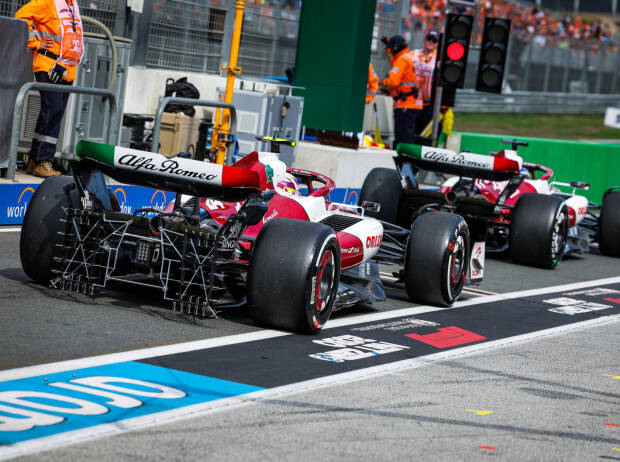

And Alfa Romeo had extra modifications on the rear

Zoom

Download

In this case, the form of the deflector has been modified, which the group hopes will enhance efficiency for localized stream, with the aspect impact of bettering stream via the diffuser.

The group fitted a big keel probe to the again of the C42 throughout free follow to make sure the components had been performing because the simulations predicted.

.
