Why the Haas update was smarter than the Ferrari copy

(Motorsport-Total.com) – Haas introduced a complete improve at the Hungarian Grand Prix, with the racing crew seeking to comply with up after a really sturdy begin to the 2022 Formula 1 season. After coming in at the backside of the Constructors’ Championship final 12 months, the US crew leads Williams, Aston Martin and Alfa Tauri after twelve of the season’s 22 races.

Redesigned Haas VF-22 sidepods

Redesigned Haas VF-22 sidepods

Zoom

Download

That’s a powerful feat contemplating Haas has been the least energetic on growth. On the one hand, this speaks for the good design of the VF-22, and on the different hand for the proven fact that Haas bought the most out of the given prospects.

Before the Hungarian Grand Prix, the crew solely launched updates in 5 of the 12 races. However, all these had been thought of insignificant as compared. Especially given what different groups have developed which are nonetheless behind them by way of efficiency.

The first main improve in the 2022 F1 season

Because of this, there was plenty of buzz round the main upgrades the crew unveiled at the Hungaroring. Allegations had been shortly made that it was nothing extra than a “white Ferrari”.


Photo Gallery: Formula 1 Technology: Detailed images of the 2022 Hungarian Grand Prix

Some have concluded that Haas copied Ferrari’s instance with its newest update, which isn’t fully true. However, the crew admitted to following its technical companion.

“We have the similar engine as Ferrari, the similar gearbox, the similar suspension. Why ought to we copy one thing else?” asks crew boss Gunther Steiner. “And they win races with it. One plus one equals two, we’re not silly.”

More than only a Ferrari copy

In one respect, Haas was even perhaps smarter than his direct opponents, as the evolution didn’t stray too removed from its roots.

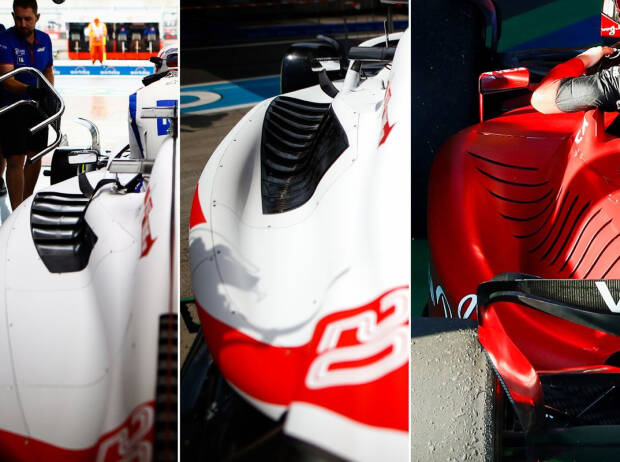

The original Haas sidepod (left), the Hungarian upgrade (middle), and Ferrari's solution (right).

The authentic Haas sidepod (left), the Hungarian improve (center), and Ferrari’s answer (proper).

Zoom

Download

Comparing the sidepods utilized in the first half of the season and seen on Mick Schumacher’s automobile in Hungary with the new answer (centre) you’ll be able to see that there’s a clear approximation of the tub-like hole seen on the Ferrari F1. -75 (proper). But it stays the similar design line.

Other groups akin to Aston Martin and Williams, in the meantime, have utterly modified their design ideas alongside the strains of Red Bull, as a substitute of refining and optimizing the options they began the season with.

You can clearly see that Haas was impressed by Ferrari at the high of the sidepod. This has additionally led to some vital adjustments to the total physique form as the crew focuses on getting extra efficiency out of the present technology automobile.


80 factors: No one has ever caught so many!

Loading video…

80 points: No one has ever caught so many!

Ferrari has the quickest automobile however cannot work out the technique. That may price Leclerc his final World Cup possibilities.

More Formula 1 Videos

Previously, designers used bargeboard and sidepod deflectors to recalibrate airflow paths. These aerodynamic instruments are not obtainable to them.

This is essential when contemplating the wake generated by the tire as the entrance fenders have additionally been simplified in order that they’re much less used as a method of disturbing and altering the wake.

The total form of the physique has modified

With this in thoughts, Haas launched an improved endplate diveplane design for the VF-22 at the British Grand Prix, though it was not used at the time. This signifies that with out the new bundle (blue arrow) it doesn’t present the anticipated improve in efficiency over the wishbone design.

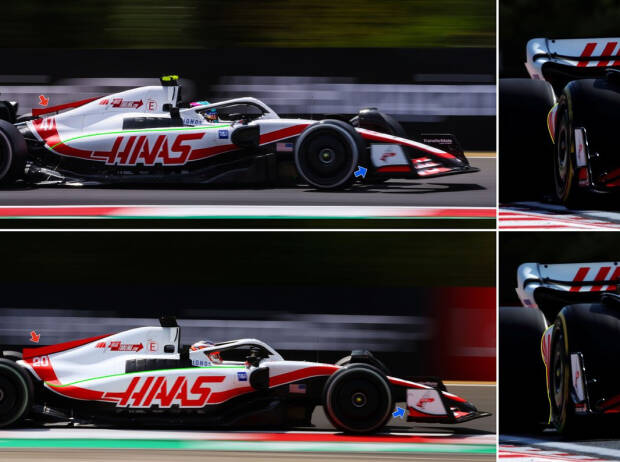

Comparison between the previous (above) and new (below) designs of the Haas VF-22

Comparison between the earlier (above) and new (under) designs of the Haas VF-22

Zoom

Download

Meanwhile, it may be clearly seen that the form of the sidepod has modified, with increased shoulders, leading to a change in the total geometry of the physique (highlighted in inexperienced). It can also be noticeable that the lateral aspect of the sidepod has modified, which will be seen not solely in the form of the Haas paintwork, as the bulge is much less abrupt, but in addition considerably wider at the base (see comparability from entrance and yellow. marking).

With Haas not having the aforementioned aerodynamic instruments in 2022, the crew is compelled to make use of bodywork as a method of disrupting, adjusting and re-calibrating the entrance wheels in order to not compromise efficiency.

Air circulate needs to be optimized

Modifications to the sidepods will assist push the wake generated by the entrance tires away from the automobile and in addition enhance downforce. This is essential not solely by way of the circulate wanted to enhance circulate in the coke bottle space, but in addition by way of how the airflow is pushed throughout the face of the rear tire.

Changes the crew has made to the rear suspension may also profit from improved airflow round the Coke bottle space. The fairings enclosing numerous elements have been redesigned.

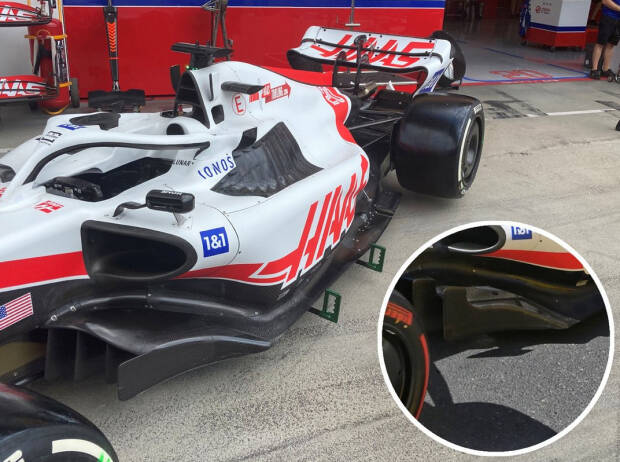

Changes in the underbody, previous design dizzy

Changes in the underbody, earlier design dizzy

Zoom

Download

Another consequence of the sidepod redesign is that the crew deserted the centrally situated cooling at the rear of the engine cowl, permitting the shark fin to carry the bodywork (pink arrow).

Also improvements on the underbody

While adjustments to the sidepod are unclear, the VF-22’s underbody has additionally seen some adjustments. The crew is attempting to squeeze extra efficiency out of an space of ​​the automobile the place designers have plenty of freedom.

In that respect, there are adjustments to the entrance of the underbody and to the edge fence – an space the place all opponents have already made adjustments to optimize circulate circumstances and enhance experience sensitivity.

.
